Kenny Ho - Project Portfolio

Overview

Delino is a desktop application for couriers to manage delivery tasks. The user interacts with it using a CLI, and it has a GUI created with JavaFX. It is written in Java, and has about 16 kLoC.

Summary of contributions

Major enhancement:
1. Added search feature (Pull request #187)
  Functionality of feature can be found here and implementation of it can be found here.
  - What it does:
    Allows the user to specifically search for keywords that matches any fields of the parcel. The user are also able to narrow down their search range by providing different flags and prefixes.
  - Justification:
    This is one of the key feature of Delino as it allows the user to sieve out parcels of their interest from the large parcels list.
  - Highlights:
    This enhancement is heavily affected by the fields added in parcel. A new field requires an update for Search, hence affecting future implementation. Implementing this feature requires the thorough understanding of the existing class in AB3 such as the ArgumentMultimap and the NameContainsKeywordsPredicate. Furthermore, JavaFX class Predicate was used to achieve functionality of this feature. Moreover, as this features allows user to search in many different possible way, testing the different scenarios are hard. ParametizedTest of JUnit testing was used to make my test code much cleaner.
2. Updated edit feature (Pull request #234)
  Functionality of feature can be found here and implementation of it can be found here.
  - What it does:
    Allows the user to edit specific fields of a parcel, Order or Return Order.
  - Justification:
    This is one of the key feature of Delino as it allows the user to edit any field in Orders or Return Orders. It is especially important as the user might need to reschedule the delivery date due to unforeseen circumstances.
  - Highlights:
    This enhancement is affected by the design of parcel class. It affects the future implementation of any future features that will alter the parcel design. This feature requires a thorough understanding of the existing code of AB3 such as the ArgumentMultimap class.
Minor enhancement:
1. Improve UI of Delino (Pull requests: #209, #221), #363.
2. Allow user to easily see the time in Delino by adding a real-time clock (Pull requests: #336).
Code contributed: [Functional code & Test code]
Other contributions:
- Project management:
  1. In charge of both code integration and testing.
  2. Finalised the pre-releases and releases of Delino v1.2, v1.3 and v1.4 on github.
- Enhancements to existing features:
  1. UI changes Pull requests : #209, #221, #363.
  2. Improve search feature and edit feature functionality to cover Return Order as well as coverage of test case and error messages #187, #234, #248, #305.
- Documentation:
  1. Update Edit feature, Search feature, Quick start, Glossary and minor documentation bugs of User Guide (Pull requests: #91, #92, #128, #135, #177, #195, #227, #316).
  2. Update Use cases 1-6, Product Scope, Image rendering bug, Search feature and Edit feature of Developer Guide (Pull requests: #76, #114, #178, #204, #208, #231, #249, #259, #316).
  3. Added own email in ContactUs, changed title of all documents to match Delino name and Update of own PPP (Pull requests : #80, #92, #321).
- Community:
  - PRs reviewed (with non-trivial review comments): #81, #116, #121, #171, #181, #194, #309, #318
  - Contributed to forum discussions by asking a few help questions #32, #35, #89, #108.
  - Reported bugs and suggestions for other teams in the class #1, #2, #3, #4, #5, #6, #7, #8.
- Tools:
  - Integrated a third party library (Travis) to the project (#8f78de0)

Contributions to the User Guide

Given below are sections that I have contributed to Delino’s User Guide. They showcase my ability to write documentation targeting end-users.

Edit feature

This whole section on Edit feature can be found here. This link is provided in the event if some of the cross links are not working, as they refer to documents done by another team member.

Editing an order : `edit` [Done by - Kenny Ho Si Chong]

In this section, you will be able to find out how to properly use the edit command and the relevant examples.
Why will you want to use the edit command? If you wish to edit any field of a parcel, the edit command will provide you the means to do so.

How to use the Edit command

Here is how you can edit the details of any parcel by following the steps below:

Step 1 : Type in the keyword edit
Step 2 : Provide the FLAG corresponding to the parcel order type you want to edit
Step 3 : Provide the INDEX of the parcel displayed on the screen that you wish to edit
Step 4 : Provide the ORDER_ATTRIBUTE_PREFIX coupled with a front slash / and the new value you want to change to.
Step 5 : Press Enter on your keyboard to see the magic!

In between each step please put a whitespace!
If you can’t see any orders or returns use the list command to view existing parcel! If nothing is showing up means you got to add some order or return parcel and start doing work!

What constitutes a valid Edit command

The syntax for a valid edit command can be seen below:

edit FLAG INDEX ORDER_ATTRIBUTE_PREFIX/NEW_VALUE [ORDER_ATTRIBUTE_PREFIX/NEW_VALUE]…

edit is the command word for this feature.
FLAG is to differentiate the different kind of parcel (orders or returns).
The INDEX given is the parcel you will be editing on.
ORDER_ATTRIBUTE_PREFIX is the field of the parcel you want to change
NEW_VALUE is the new value you want to replace the old value with.

These are the possible combinations of the edit command:

Table 1. Possible Combinations of Edit command
Scenario	Command	Result
If you want to edit the name of the first return order displayed on returns list	`edit` `-r` `1` `n/Xuan En`	The index `1` customer’s name of the return order list will be changed to `Xuan En`.
If you want to edit the phone number of the second order displayed on the orders list.	`edit` `-o` `2` `p/99994444`	The index `2` customer’s phone number of the order list will be changed changed to `99994444`.
If you want to edit the address of the first order displayed on the orders list.	`edit` `-o` `1` `a/Blk 123 Pasir Ris Street 51 #12-21 S510123`	The index `1` customer’s address of the order list will be changed to `Blk 123 Pasir Ris Street 51 #12-21 S510123`.
If you want to edit the name, phone number and address of the third return order displayed on the returns list.	`edit` `-r` `3` `n/Mr Tan` `p/96959321` `a/Blk 141 Yishun st 71 #09-09 S760141`	The index `3` customer’s name, phone and address of the return order list will be changed accordingly to the prefix.

The INDEX must be a positive integer, e.g: 1, 2, 3, …
The INDEX must be in range of the number of displayed orders
Only can be used when there is at least an order displayed.
The FLAG can only be either -o or -r.

Search feature

This whole section on Search feature can be found at here. This link is provided in the event if some of the cross links are not working, as they refer to documents done by another team member.

Searching for parcels using their attributes: `search` [Done by Kenny Ho Si Chong]

In this section, you will be able to find out how to properly use the search command and the relevant examples.
Why will you want to use the search command? If you wish to search for a parcel with specific keywords, the search command will provide you the means to do so.

How to use the Search command?

Here is how you can search for any parcel containing the keywords given by the following steps below:

Step 1 : Type in the keyword search
Step 2 (optional) : Provide -o flag if you want to only search for parcels in the order list. A -r flag also can be used to only search for parcels in the return order list.

If no flag is given in this step, search command will be performed on both the order and return order list.

Step 3 (optional) : If you wish to only specifically search for keywords in a field, you should provide the ORDER_ATTRIBUTE_PREFIX coupled with a front slash / and the keyword you want to search for.
Step 4 : Provide any number of alphanumeric words you wish to search for in the parcel.
Step 5 : Press Enter on your keyboard to see the magic!

In between each step please put a whitespace!
If nothing is displaying means you have no parcel containing the keyword you have given!
Keyword searches are case-insensitive, e.g: Jeremy matches jErEmY or jeremy or any alphabet casing permutations.

What constitutes a valid Search command?

The syntax for a valid search command can be seen below:

search [FLAG] KEYWORD [MORE_KEYWORDS]… OR
search [FLAG] ORDER_ATTRIBUTE_PREFIX/KEYWORD [MORE_KEYWORDS]… [ORDER_ATTRIBUTE_PREFIX/KEYWORD] [MORE_KEYWORDS]…

search is the command word for this feature.
FLAG is to differentiate the different kind of parcel (orders or returns).
The KEYWORD is the word you want to search for in any of the parcel and it is case-insensitive.
ORDER_ATTRIBUTE_PREFIX is the field of the parcel you want to search for

These are the possible combinations of the search command:

Table 2. Possible Combinations of Search command
Scenario	Command	Result
If you want to search for any return parcel containing the keyword `Jeremy` or `Loh`.	`search` `-r` `Jeremy Loh`	Return all return order(s) containing keyword of `jeremy`, `Jeremy Loh` or `loh` or any of the above as long as it appears in any of the parcel field.
If you want to search for any order parcel that contain the transaction id of `asj2od3943`.	`search` `-o` `tid/asj2od3943`	Return all order(s) with transaction ID of `asj2od3943`.
If you want to search for any return parcel that contain the phone number of `92039999`.	`search` `-r` `p/92039999`	Return all return order(s) with phone number of `92039999`
If you want to only search for any order parcel that contains either the phone number `92039999`, transaction id of `asj2od3943` or the name `jeremy`.	`search` `-o` `p/92039999` `tid/asj2od3943` `n/jeremy`	Return all order(s) with either phone number of `92039999` or transaction ID of `asj2od3943` or name of `jeremy` or any of the above combinations.
If you want to search for any parcel containing the name `Jeremy`.	`search` `n/Jeremy`	Return all parcel(s) with the name of `Jeremy`

The search is case insensitive. e.g hans will match Hans
The sequence of the keywords does not matter. e.g. Hans Bo will match Bo Hans
Only full words will be matched e.g. Han will not match Hans
Orders matching at least one keyword will be returned (i.e. OR search). e.g. Hans Bo will return Hans Gruber, Bo Yang

Command summary

This whole section on Command summary can be found at here. This link is provided in the event if some of the cross links are not working, as they refer to documents done by another team member.

In this section, you can find out more about the commands supported by Delino (their respective format and example).

If you would like to know more about a specific command, you can view more information by clicking the provided link in the table below.

Table 3. Command Summary
Command	Format	Example
Insert	`insert` `tid/TRANSACTION_ID` `n/CUSTOMER_NAME` `a/ADDRESS` `p/PHONE_NUMBER` `e/EMAIL` `dts/DELIVERY_DATE_&_TIME` `w/WAREHOUSE_LOCATION` `cod/CASH_ON_DELIVERY` `[c/COMMENTS_BY_CUSTOMER]` `[type/TYPE_OF_ITEM]`	`insert` `tid/0123456789` `n/Eng Xuan En` `a/Tampines St 84 Blk 877 S520877 #01-123` `p/87654321` `e/xuanen@example.com` `dts/2020-02-20 1300` `w/Yishun industry` `cod/$4.50` `c/please knock the door three times :D` `type/heavy`
Clear	`clear` `[FLAG]`	`clear` `clear` `-f` `clear` `-r` `clear` `-f` `-r` `clear` `-o` `clear` `-o` `-f`
Delete	`delete` `FLAG` `INDEX`	`delete` `-o` `2`
Delivered	`delivered` `FLAG` `INDEX`	`delivered` `-r` `2` `delivered` `-o` `1`
Edit	`edit` `FLAG` `INDEX` `ORDER_ATTRIBUTE_PREFIX/VALUE`	`edit` `-r` `2` `n/Xuan En` `edit` `-o` `2` `p/99994444` `edit` `-o` `1` `a/Blk 123 Pasir Ris Street 51 #12-21 S510123` `edit` `-r` `3` `n/Mr Tan` `p/99994567` `a/Blk 141 Yishun st 71 #09-09 S760141`
Exit	`exit`	`exit`
Search	`search` `FLAG` `ORDER_ATTRIBUTE_PREFIX/KEYWORD` `[MORE_KEYWORDS]…` `[ORDER_ATTRIBUTE_PREFIX/KEYWORD MORE_KEYWORDS]…`	`search` `-r` `tid/ac1e345x7s` `search` `-r` `Jeremy Loh` `search` `-o` `tid/asj2od3943` `search` `-r` `p/92039999` `search` `-o` `p/92039999` `tid/asj2od3943` `n/jeremy`
Help	`help`	`help`
Show	`show` `START_DATE` `[END_DATE]`	`show` `2020-01-01` `2020-12-31`
	`show` `all`	`show` `all`
	`show` `today`	`show` `today`
	`show` `DATE`	`show` `2020-03-20`
Import	`import` `FILE_NAME`	`import` `orders.csv`
List	`list` `[DONE_STATUS]`	`list` `list` `done` `list` `undone`
Return	`return` `tid/TRANSACTION_ID` `n/CUSTOMER_NAME` `a/ADDRESS` `p/PHONE_NUMBER` `e/EMAIL` `rts/RETURN_DATE_&_TIME` `w/WAREHOUSE_LOCATION` `[c/COMMENTS_BY_CUSTOMER]` `[type/TYPE_OF_ITEM]`	`return` `tid/ac17s2a` `n/BOBBY TAN` `a/123 Delta Road #03-333, Singapore S169814` `p/91230456` `rts/2020-12-12 1301` `w/Jurong Warehouse` `c/NIL` `type/glass` `return` `tid/ac17s2a` `return` `tid/b1230512` `n/Aaron Teo` `a/256 Delta Road #03-222, Singapore S169256` `p/91230456` `e/aaron@example.com` `rts/2020-12-12 1400` `w/Jurong Warehouse` `c/Leave it at the lobby` `type/metal`
	`return` `tid/TRANSACTION_ID` `rts/RETURN_DATE_&_TIME`	`return` `tid/ac17s2a` `rts/2020-12-12 1301`
Nearby	`nearby` `[FLAG]` `POSTAL_SECTOR` OR `nearby` `[FLAG]` `AREA`	`nearby` `east` `nearby` `-o` `14` `nearby` `-r` `north`

Contributions to the Developer Guide

Given below are sections that I have contributed to Delino’s Developer Guide. They showcase my ability to write technical documentation and the technical depth of my contributions to the project.

Edit feature

This whole section on Edit feature can be found here. This link is provided in the event if some of the cross links are not working, as they refer to documents done by another team member.

Edit Feature

In this section, the functionality of the edit feature, the expected execution path, the structure of the EditCommand class and the interactions between objects with the EditCommand object will be discussed.

What is Edit Command

The edit feature was implemented as EditCommand in the Logic package.

edit feature format : edit INDEX FLAG ORDER_ATTRIBUTE_PREFIX/NEW_VALUE [ORDER_ATTRIBUTE_PREFIX/NEW_VALUE]

The edit feature allows the user to edit any field except delivery status of the order or the return order. However, user must provide a FLAG and INDEX.
FLAG to indicate which parcel type to edit; -o and -r FLAG to represent Order or Return Order respectively.
INDEX to indicate which parcel the user wants to edit.
The list of the different parcel fields are listed in Appendix E: Glossary.

This feature allows user to edit more than one field within a command.

Limitation

Editing the delivery/return time is that the updated delivery date or return date must not be in the past.
There must be an order first for edit command to work.

Execution paths of Edit Command

Figure 1. EditCommand Activity Diagram

The above figure illustrates the execution path of edit command when performed by the user.

Input when received, will be parsed by the DelinoParser. DelinoParser will check if command word matches any features command word.
In this feature, the command word is edit. If no command word is detected, a exception class should be generated for displaying of error message. CommandException is used in this feature to achieve that function.

Once validated, user input is once again parse and check for validity. At this step, if user have provided input not matching the valid edit format, an exception class is thrown.
Furthermore, if NEW_VALUE is invalid an exception should be thrown as well.
ParseException class is used in this scenario.

Some invalid NEW_VALUE:
1) Editing delivery date or return date to the past.
2) Change the transaction id of one parcel to match another parcel.
3) Violation of any field(s) restriction.

A correct input will prompts Delino to carry out the rest of the steps according.
1) Checking of the FLAG
2) Edits the the parcel. 3) Display edit success message.

Structure of Edit Command

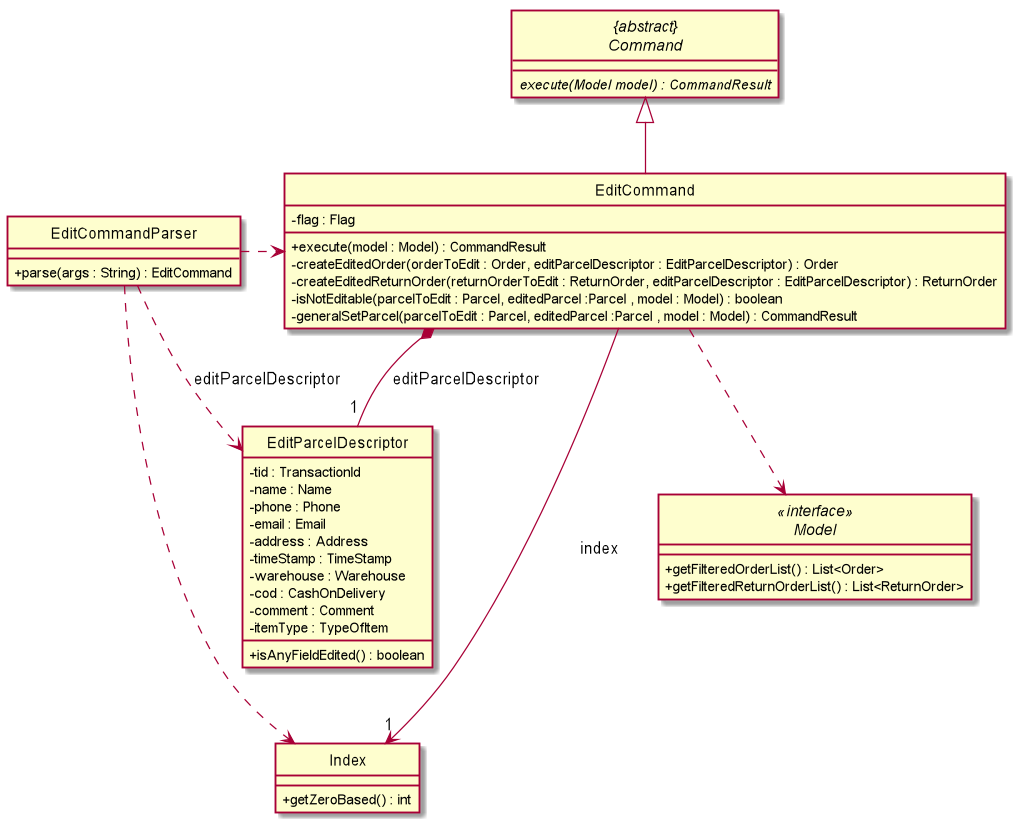

Figure 2. Edit Command Class Diagram

The class diagram above depicts the structure of EditCommand. As per any Command class, EditCommand needs to extend the abstract class Command.
Information that are left out in this class diagram are the common messages used in EditCommand.

Interactions between Edit Command and it’s associated objects

Figure 3. Edit Command Sequence Diagram

The above figure illustrates the important interactions of EditCommand when the user successfully edit the first displayed order name to Alice.

The handling of breaking down the user input is done in the EditCommandParser class which is called upon by the DelinoParser after an initial check for correctness of the command input.

The EditParcelDescriptor class is a static class contained in the EditCommand class. It act as a helper class to allow the setting of all the NEW_VALUE to the corresponding ORDER_ATTRIBUTE_PREFIX in the EditCommandParser class. The EditParcelDescriptor object is then passed back as a parameter to instantiate an EditCommand. In the diagram above, the EditParcelDescriptor object is named as epd. The EditCommand object is then passed back as e to the LogicManager which will then call EditCommand#execute. This execute method mainly calls the 3 helper method, not shown, EditCommand#createEditedOrder/EditCommand#createEditedReturnOrder and EditCommand#generalSetParcel. The main function of these methods are to help EditCommand in updating the ObservableList in the Model class which is responsible for the updating of list displayed.

The ObservableList is a JavaFX class which listens and automatically changes the list once an update is performed.

Search feature

This whole section on Search feature can be found at here. This link is provided in the event if some of the cross links are not working, as they refer to documents done by another team member.

Search Feature

In this section, the functionality of the search feature, the expected execution path, the structure of the SearchCommand class and the interactions between objects with the SearchCommand object will be discussed.

What is the Search feature

The search feature was implemented as the SearchCommand in the logic package.

The search feature allow users to search for any orders according to the provided input.

search feature format: search [FLAG] [ORDER_ATTRIBUTE_PREFIX]/[KEYWORD]

A space is needed in between each word.

Keyword search is case-insensitive. E.g: Given Jeremy it matches JeReMy, jeremy or any permutations of alphabet casing.

There are two mode of searching, general search or specific search.
If the user does not provide any ORDER_ATTRIBUTE_PREFIX, a general search mode will be performed on orders, return orders, or both depending on the FLAG.

The [FLAG] -o when given, searches only for parcels in the order list.
The [FLAG] -r when given, searches only for the parcels in the return order list.

General search will search for all fields in an order/return orders/both that have any matching fields.

If the user provide any ORDER_ATTRIBUTE_PREFIX, a specific search will be performed.

Specific search will search orders/return orders/both based on the given ORDER_ATTRIBUTE_PREFIX.

Execution paths of Search Command

Figure 4. Search Command Activity Diagram

The above activity diagram illustrates the different execution paths of search command.
Whenever a user keys in an input with the search keyword, the SearchCommandParser class will handle the parsing of input.
User input will be validated in the SearchCommandParser class.

Input is deemed as invalid and ParseException is thrown under these scenarios:
1) FLAG given is not -o or -r.
2) Multiple FLAG detected.
3) No KEYWORD is given after search.

View the list of allowed prefixes in this search command here.

Structure of Search Command

Figure 5. Search Command Class Diagram

The above class diagram depicts the structure of the class SearchCommand. As per any Command class, SearchCommand needs to extend the abstract class Command.
Information that are left out in this class diagram are the common messages used in SearchCommand.

Interactions between objects when Search Command is executed

Figure 6. Search Command Sequence Diagram

The sequence diagram above illustrates the interactions between objects when search command is performed by the user.
Particularly, the interactions shown is a success search command executed by the user and only an abstract view is shown.

LogicManager first calls parseCommand with arguments representing the user input, Alice. The SearchCommandParser will then check for any invalid arguments passed by the user.

If the given arguments are valid, SearchCommandParser will return a new SearchCommand object.
If the given arguments are invalid or empty, a ParseException object will be thrown (not shown in the diagram).

The SearchCommandParser will then checks for the presence of any FLAG. The presence of one will result in different SearchCommand constructor being called.
The SearchCommandParser will call the both the OrderContainsKeywordsPredicate constructor and the ReturnOrderContainsKeywordsPredicate if no FLAG is given.
However, if a FLAG is given, the corresponding predicate will be instantiated and passed as an parameter for the SearchCommand constructor with the other left as null value.

What is not shown is that optionally, either OrderContainsKeywordsPredicate or ReturnOrderContainsKeywordsPredicate can be null if a FLAG is given. However, under no circumstances should both be null.

The parsing of user input utilises ArgumentTokenzier (not shown in sequence diagram) to process and split each KEYWORD to it’s corresponding ORDER_ATTRIBUTE_PREFIX, if given any.

If the preamble to any ORDER_ATTRIBUTE_PREFIX is not empty, a general search will be performed in which KEYWORD will be searched through all fields of parcel.
However, if ORDER_ATTRIBUTE_PREFIX is given and the preamble is empty, the specific search will be performed. Only parcel fields that correspond to the given ORDER_ATTRIBUTE_PREFIX will be searched and matched with the KEYWORD.

The order and return order list updates automatically as the JavaFX class ObservableList is used to listen to any changes.

Use case for Edit

This whole section on Use case for edit feature can be found at UC05 of here. This link is provided in the event if some of the cross links are not working, as they refer to documents done by another team member.

Use case: UC05 - Editing order details

Preconditions: There should be a valid order/return order that can be edited.

MSS

User requests to list orders (UC10).
User wants to edit a specific order.
User request to edit order details.
Delino edit the order details.
Delino display changes made.

Use case ends.

Extensions

3a. Delino detects invalid syntax from user input.
- 3a1. Delino shows an error message.

  Use case ends.

3b. Delino unable to detect any parcel specified by the user.
- 3b1. Delino shows no parcel found message.

3c. Delino detects duplicate parcel.
- 3c1. Delino shows duplicate parcel message.

  Use case ends.

Use case for search

This whole section on Use case for search feature can be found at UC07 of here. This link is provided in the event if some of the cross links are not working, as they refer to documents done by another team member.

Use case: UC07 - Search an order

Preconditions: There should be a valid order/return order in Delino.

MSS

User wants to search a specifc order or return order by a given keyword.
User request to search specific order or return order by a given keyword.
Delino display the requested order.

Use case ends.

Extensions

2a. Delino detects invalid syntax from user input.
- 2a1. Delino shows an error message.

  Use case ends.

2b. Delino unable to find any parcel field that matches the given keyword.
- 2b1. Delino display parcel not found message.

  Use case ends.

Manual Testing - Appendix Edit

This whole section on Manual testing of Edit feature can be found here. This link is provided in the event if some of the cross links are not working, as they refer to documents done by another team member.

Edit orders

Edit the details of the delivery order by specifying the FLAG (order type), INDEX (parcel number displayed), ORDER_ATTRIBUTE_PREFIX (the field user want to change) and NEW_VALUE (the new value that user want to replace the old ones with). For detailed implementation explanation click here.
1. Prerequisite: Call the list command to show something or insert/return command to add something before you can edit.
2. Edit command format: edit FLAG INDEX ORDER_ATTRIBUTE_PREFIX/NEW_VALUE
3. Test case: edit -r 1 n/Xuan En
  Expected: The first index customer’s name is changed to Xuan En.
4. Test case: edit -o 2 p/99521654
  Expected: The second index phone number is changed to 99521654.
5. Test case: edit -o 1 a/Blk 123 Pasir Ris street 51 #12-23 S510123
  Expected: The first index is edited where the address of the customer of the order will be changed to Blk 123 Pasir Ris Street 51 #12-23 S510123.
6. Test case: edit -r 2 n/Mr Tan p/98776655 a/Blk 841 Yishun st 81 #01-02 S760841
  Expected: The second index of the list is edited. The name is changed to Mr Tan, phone number changed to 98776655 and address will be changed to Blk 841 Yishun st 81 #01-02 S760841.
7. Test case: edit -o 1 dts/2020-08-09
  Expected: The delivery date of the first index of the customer will be rescheduled to 09/08/2020.
8. Test case: edit -r 1 rts/1900-02-02
  Expected: The response box will display an error message as it is impossible to put a date that is already passed.

Manual Testing - Appendix Search

This whole section on Manual testing of Search feature can be found here. This link is provided in the event if some of the cross links are not working, as they refer to documents done by another team member.

Search an order

Search an order based on the KEYWORD and FLAG(if any) given. For a more detailed explanation of the implementation click here.
1. Search command format: search FLAG KEYWORD
2. Test case: list done
  search -r Jeremy Loh
  Expected: Specifically search for any return order from the return order list that has any field matching the keyword of either Jeremy, Loh or both and print it to the user.
3. Test case: list undone
  search -o tid/asj2od3943
  Expected: Specifically search for any order from the order list that has a Transaction id of asj2od3943 and print it out to the user.
4. Test case: list
  search n/Jeremy
  Expected: Specifically search for both return order or order from both list that has one word of the name matching the key word Jeremy.
5. Test case: list
  search
  Expected: An error message will appear in the response box, stating that the argument cannot be empty and there are no changes to the list itself.
